產品規格 :

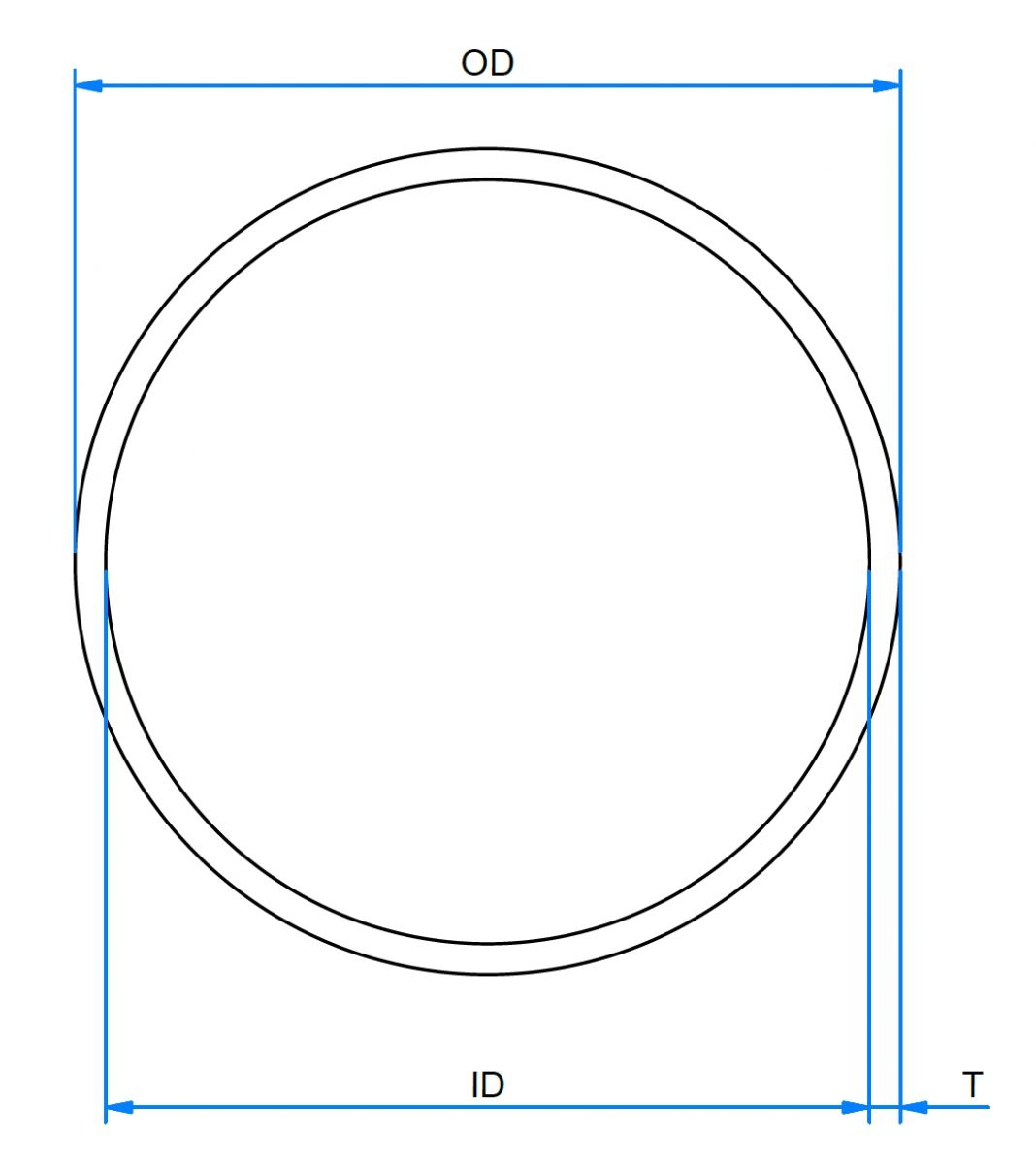

端子管外徑	外徑公差	端子管內徑	內徑公差	端子直管長度
1.1	+0.02/-0.02	0.8	+0.03/-0	5.0~2000
1.3	+0.02/-0.02	1.0	+0.03/-0	5.0~2000
1.5	+0.02/-0.02	1.2	+0.03/-0	5.0~2000
1.7	+0.02/-0.02	1.4	+0.03/-0	5.0~2000
2.1	+0.02/-0.02	1.7	+0.03/-0	5.0~2000
2.6	+0.02/-0.02	2.3	+0.03/-0	5.0~2000
3.2	+0.02/-0.02	2.8	+0.03/-0	5.0~2000
3.9	+0.02/-0.02	3.5	+0.03/-0	5.0~2000
4.9	+0.02/-0.02	4.5	+0.03/-0	5.0~2000
6.2	+0.02/-0.02	5.8	+0.03/-0	5.0~2000
7.7	+0.02/-0.02	7.3	+0.03/-0	5.0~2000
8.7	+0.02/-0.02	8.3	+0.03/-0	5.0~2000
11.0	+0.02/-0.02	10.3	+0.03/-0	5.0~2000

標準尺寸表(單位:mm) 尺寸及長度可依需求客製化調整
